SONAR (3D Mapping) / GPS / Compass


Part Number.:#101614

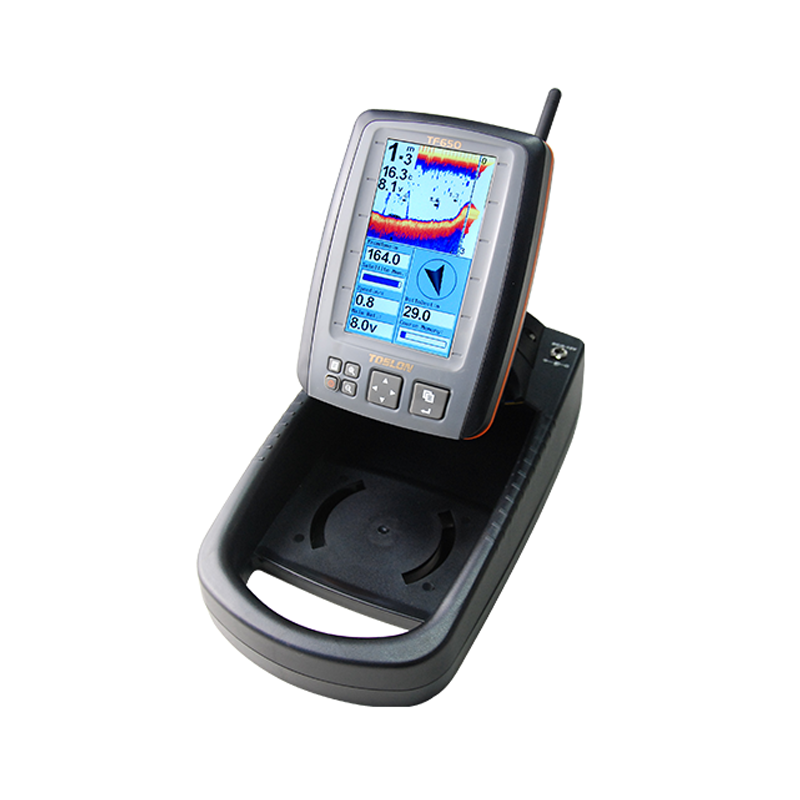

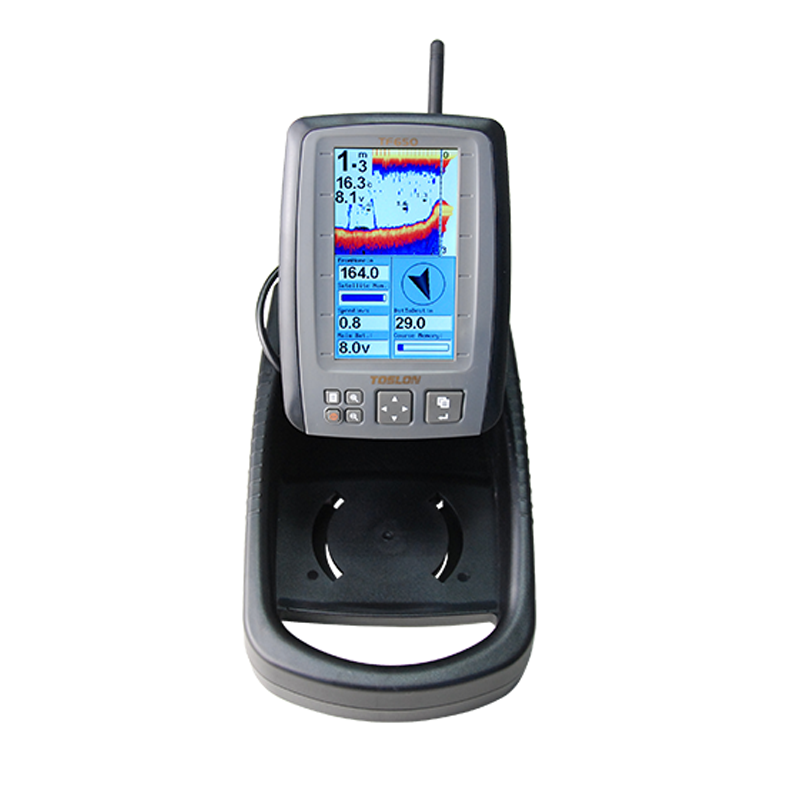

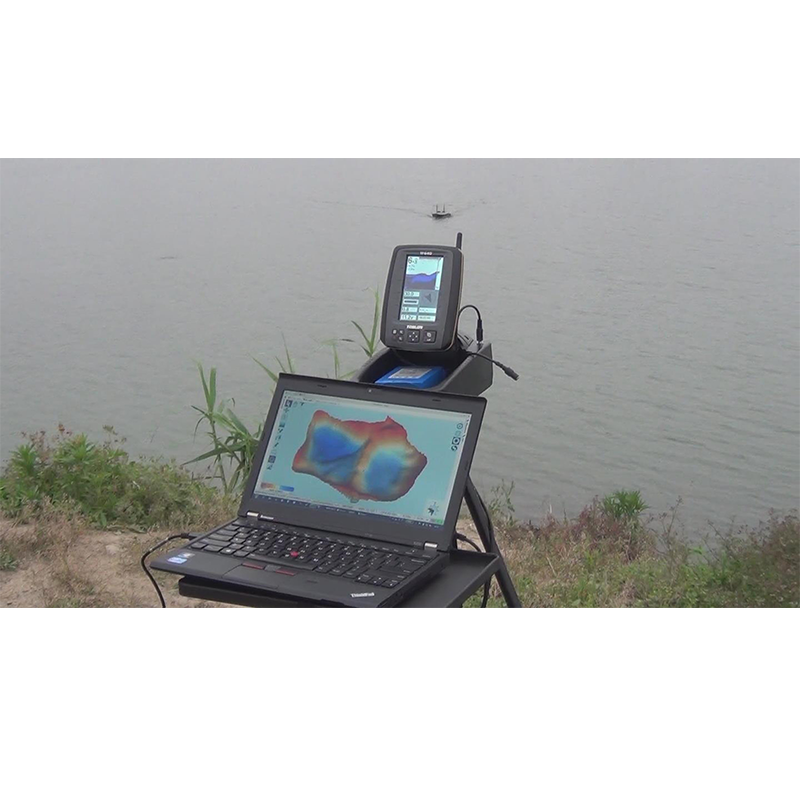

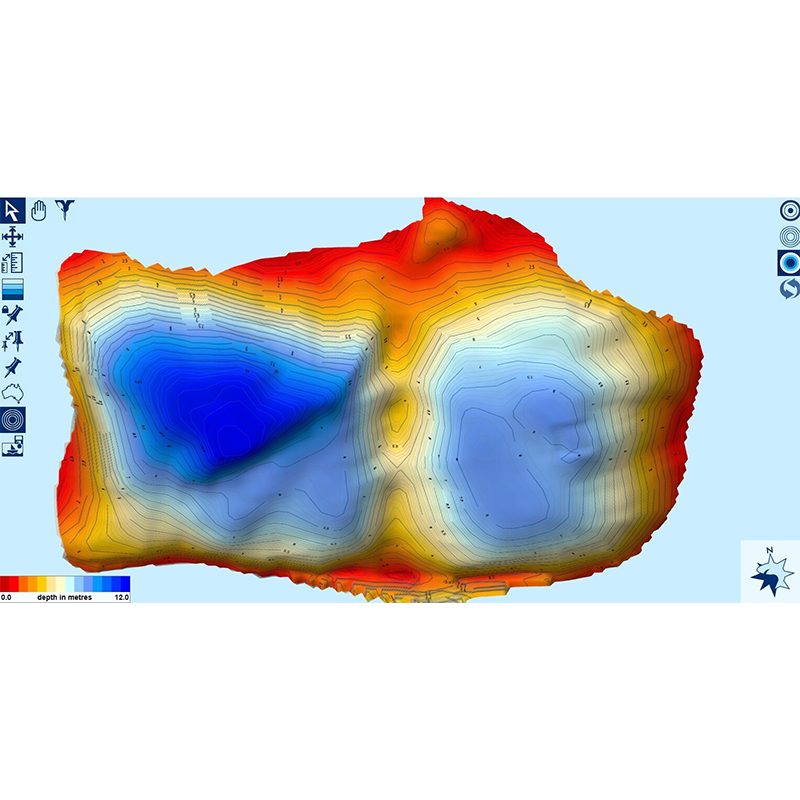

TF650 can create 3D map of water bottom (lake, river, etc ) with Reefmaster mapping software. Are you curious what’s the bottom shape under the water? Simply drive the bait boat (with TF650) across it and you can create a live 3D map of the water area. TOSLON TF650 provides a perfect solution for users to do that by combining the sonar tech and GPS data into hydrographic maps. TF650 (with a bait boat) collects depth data and transmit them to your laptop / PC by a transmitter. Then with the Reefmaster map software you will create the 3D map on your laptop / PC. TOSLON TF650 let anglers precisely know the water bottom shape, which will help them easily find new fishing spots. And it also can be used by industrial or commercial customers, like hydrologic exploration company, dredging companies, etc.


GPS and Compass

GPS data display   Distance to target, Distance to Home,Speed of boat,Time to Board,Satellite Number,Heading,Bear, Course Memory,Time of day,Main Battery.
Compass indicatior of the instant boat heading direction on screen (a red "+" on screen indicate the target)
Indicator of the position and distance to target waypoint and HOME
Boat arriving alarm
Singal lost alarming
Indication of satallite condition by color bar: red(0~3satallites); Yellow(3~6); Blue(>6)
Show the current position as latitude/longitude in decimal degrees
20 RF channels allow different users operationg at same region without interference
Detailed waypoint information including icon, name, date, etc,
Zoom in/Out route display


Adopt brand new digital wireless sonar system
Real time sonar windows display the latest sonar returns
Color Line separates fish and structure from the bottom, and defines bottom hardness.
Display target depth reading above each fish symbol as a guide for quick and precise lure presentations.
Sonar alarm: fish / shallow / low battery(boat battery and display battery)
3 background colors
Built-in temp sensor in transducer


Windows style of menu system.
Full one-year warranty; extended warranties available


GPS and RF GPS Position Accurancy CEP(circular error probability): 2.5m
Field test position accuracy: 1m
Waypoint storage 500
Route 10
Radio frequqncy 2.4GhHz
RF Range 300m(1000ft)
RF channels 20
Speed of boat yes
Longitude and latitude yes
Satallite 50 Channel
Update rate: 1 second
Hot start<1 second(open sky)
Cold start<48 second(open sky)
Sonar Sonar frequency 455kHz
Depth capability 80ft
Sonar coverage 35degree
Compass Compass built in GPS receiver yes
Compass built in display yes
compass calibration function yes
Communication Data Port NEMA 0183 Data Port
Baud Rate: 4800/9600/38400/115200Bps, (Default: 115200Bps)
Upadate Rate:  1Hz
PC Software: Reefmaster Professonal
Power Power supply of display 6~12v lithium battery or 8*AA battery
Power supply of controling box Powered by bait boat battery
DC 6~12v / 2.0w (lithium battery or 8*AA battery)
Display Display Size 4.3"TFT LCD; Sunlight Viewable
Resolution 480*272Pixels;  65,536 color
Multi-language Yes
and casing
Sonar unit size 153 x110 x 44mm
Portable case size 262 x 150 x 98mm
GPS receiver cable length 1.0m
Transducer cable length 0.5m
Operational temperature -10°C ~ 50°C
