PRODUCT | AUTOPILOT

XR310

Autopilot System for RC Boat

MSRP:€549

Part Number.:#G4050
  • KEY FEATURES
  • SPECS

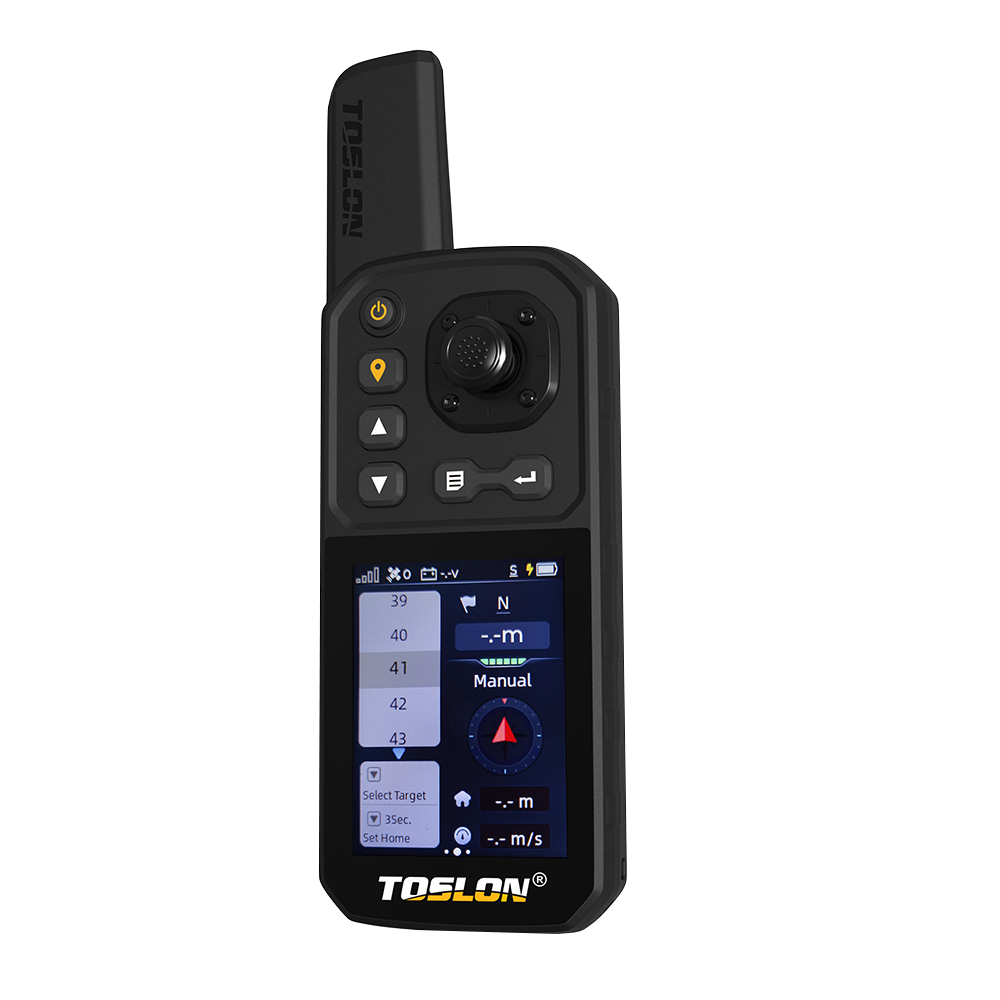

XR310, the new all in one GPS Autopilot and Handset for all bait boats. This ergonomically designed one handed unit integrates all the boats controls including GPS autopilot into an easily installed touch screen enabled device. Making holding the rod and the remote at the same time far easier whilst putting all the controls immediately at your fingertips.

KEY FEATURES

- High reliability, standard 8 channels remote, support MIXER
- Start cruise control by one click on joystick
- Autopilot mode, allow [arrive actions] and [auto back-home]
- [Quiet-reach] mode enable the boat run with lower speed when approaching the target
- Pick a point on the map and start autopilot at anytime
- 6 buttons can be mapped to any channels of the remote control, easy to use.

SPECS

Handhelds  Screen Size  2.8" color TFT, 320*240 Pixels
 Touch Screen   capacitive touch screen
 SD card storage  Yes(8~32G)
 Waypoints Number  100
 Battery   2*14650 lithium battery (not included)
 Charger Port  USB type-c / DC5V 1A
 Battery life  8hr (with 1200mAH 14650 battery)
BCS-BOX(Boat Control System)  Signal Interface  PWM,PPM,Uart(optional)
 Channels of Receiver  8
 GNSS/Compass Port  RS232, 19200bps
 Failing-safe  YES (automatically return to HOME point after signal lost lasting 20s)
 Power Input  DC 3.5/1.35mm  DC6~16V/200mA
Others  GNSS  GPS, BeiDou, Galileo, GLONASS
 Radio frequency  2.4GHz FHSS
 Radio Power  20dBm (500m RC distance , Depends on usage environment)
 Compass at Boat Side  Yes
 Compass in Handhelds  No
 Case size  179*62*27mm
 Waterproof  IP3 waterproof(safe from vertical splashing)
