XBOAT-5 is a smart bait boat, which is generally used to help fisherman transporting baits to a target position on water. Xboat-5 Powerful Yet Silent.Dual high-torque brushless motors, Max speeds up to 6km/h, yet silent without disturbing fish. Moreover，XBOAT-5 controlling system were simplified into two board(sonar module and XBCS module). Most electronic repairs can be handled by fixing these two boards.
KEY FEATURES
Extreme Portability, Massive Capacity
4.5kg (batteries incl.) , 50cm frame, 3.8L / 3kg bait
capacity, it’s ready for any session.
True ALL-IN-ONE Control
Sonar, GPS Autopilot, and hopper controls are all integrated into an one-hand remote controller.
Powerful Yet Silent
Dual high-torque brushless motors, Max speeds up to 6km/h, yet silent without disturbing fish.
Autopilot System
- Tap-to-Drop: release bait and auto-return with one tap.
- Tap any on-screen waypoint to navigate.
- Cruise-Control System (CCS) supported.
- Optional RTK-ready GNSS module: 0.5–1 m accuracy, no subscription.
Smart Safety
- Fail-Safe & Auto-Return Home (RTH) for low battery orsignal loss.
- Full sealed, Service-friendly hull.
Plug-and-Play Maintenance

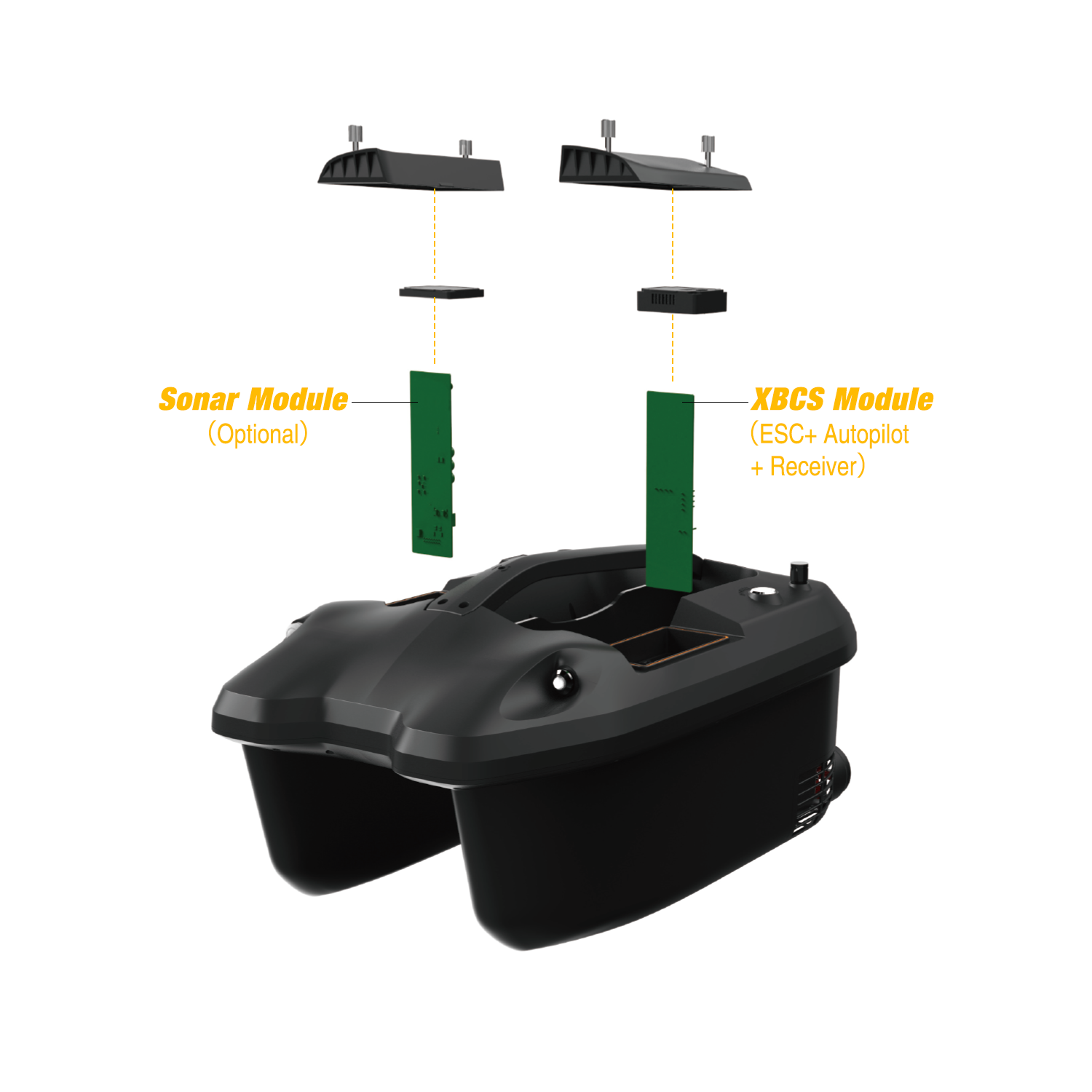

XBOAT-5 controlling system were simplified into two board(sonar module and XBCS module). Most electronic
repairs can be handled by fixing these two boards.
SPECS
|
Basic |
Dimensions: |

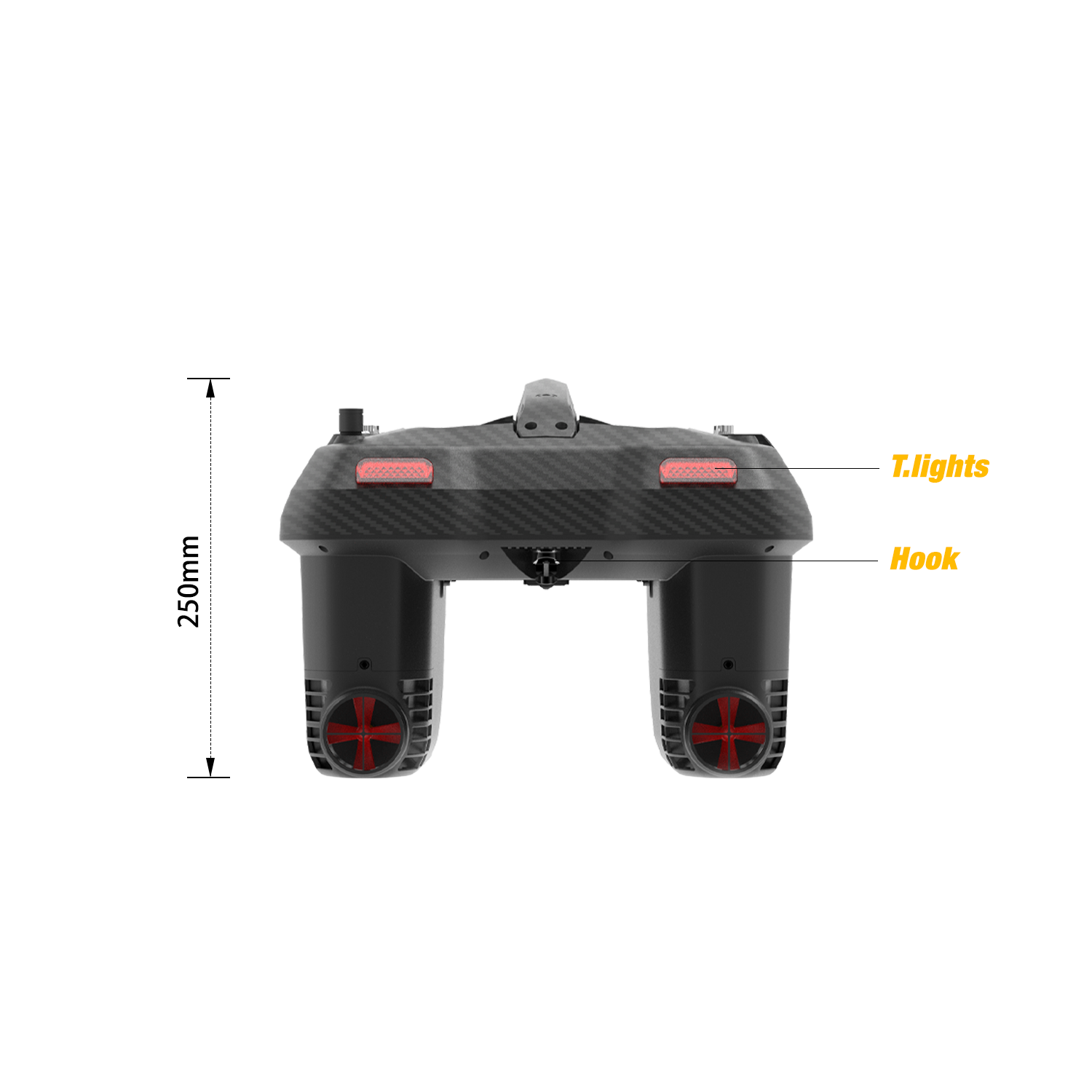

50.0*34.0*25.0cm (L*W*H) |
|
Weight (Battery incl.) |
4.5kg |
|
|
Bait capacity |
3.8L / 3kg |
|
|
Max speed |
100m/min (6km/h) |
|
|
Hook release system |
Electromagnetic (Optional stepper motor) |
|
|
Bait box |
2 (individually controllable ) |
|
|
Power |
Motor |
Dual high-torque brushless motors |
|
Battery |
9000 mAh/11.1v （2.5 hours battery life） |
|
|
R/F |
Radio Frequency |
2.4Ghz |
|
Range |
300m (may vary depending on the operating environmentm ) |
|
|
Autopilot |
CCS (Cruise Control System) mode |
Yes |
|
Tap any on-screen waypoint to activate autopilot |
Yes |
|
|
Arrived action |
Yes |
|
|
Fail-safe |
Yes |
|
|
Sonar |
Depth finder |
Real-time bottom-contour mapping with depth overlay |
|
Max depth |
45m (150ft) |
|
|
Advanced sonar function support |
Built-in fishfinder & bottom structure image (Availablewith XR500 or higher model only) |
|
|
Others |
Low battery alarm with rear lights flashing; Fully sealed hull design; Easy to maintain. |
|
